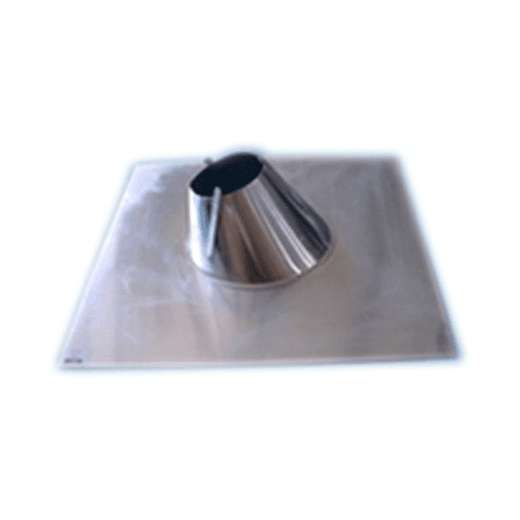

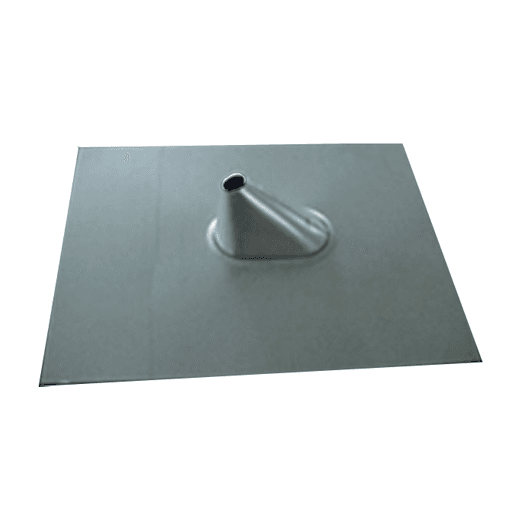

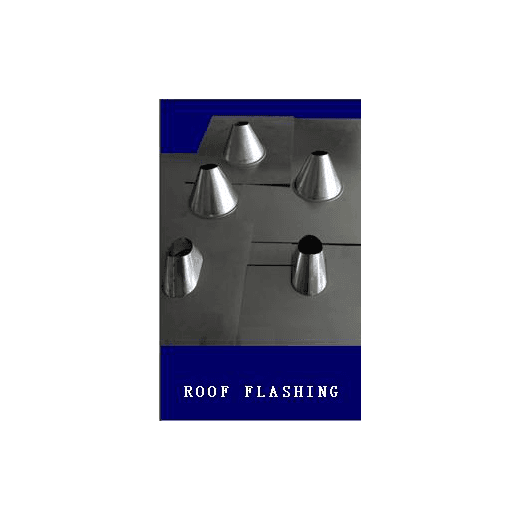

Pipe Flashing


Pipe Flashing is made of aluminum and galvanized steel. The product model start with G is galvanized steel with high zinc layer. The product model start with A is aluminum.

Pipe Flashing is composed of tube and bottom plate, the various sizes can meet the needs of different roof vents; we can also be customized according to the size.

Pipe Flashing is sturdy and durable, weatherproof, waterproof, well ventilated to protect the roof.


Product size

ModelProduct size
Diameter(inch)Floor size(inch)
ACR434SIG4 3/421.2"X21.2"
ACR434SHK4 3/421.2"X27"
GCR214REG2 1/412"X15.6"
GCR214SIG2 1/417"X17"
GCR214SHK2 1/417"X23"
GCO167FHA1 6/715"X18.7"
GCO167STD1 6/711"X13"
GCO212FHA1 6/715"X17"
GCO212TSD2 1/211"X13"
ACO167STD1 6/721"X24"
ACO212FHA2 1/221"X24"
GCR167REG1 6/712"X15"
GCR167SIG1 6/717"X17"
GCR167SHK1 6/717"X23"
ACR678SIG6 7/823"X23"

ACR678SHK

6 7/823"X29"
GCO437FHA4 3/718"X23"
GCO7FHA721"X24"
GCO719FHA7 1/922"X24"
GCR614SIG6 1/418"X18"
ACR867SHK8 6/731"X26"
ACR867SIG8 6/726"X26"
ACO725FHA7 2/524"X29"
ACO516FHA5 1/624"X27"
GCO427FHA4 2/720"X16"
GCO312FHA3 1/216"X20"
GCO512FHA5 1/222"X18"
ACR367SIG3 6/720"X20"
ACR367SHK3 6/720"X26"
GCO1FHA119"X15"
ACO1FHA124"X21"
GCO1STD114"X11"
GCO312REG3 1/215"X12"
GCO437REG4 3/717"X14"
GCO7REG718"X15"
GCO512REG5 1/217"X14"
ACO312REG3 1/225"X22"
ACO437REG4 3/727"X42"
ACO7REG728"X25"
ACO512REG5 1/227"X24"
GCO429FHA4 2/923"X18"
ACO439SHK4 1/327"X24"
ACO749FHA7 4/924"X23"
ACO749SHK7 4/928"X18"
GCR529SIG5 2/917"X17"
GCR827SIG8 2/720"X20"
GCR479SIG7/918"X18"
GCR479SHK4 7/918"X24"
GCR7SIG720"X20"
GCR7SHK720"X26"
GCO1REG1
13"X11"

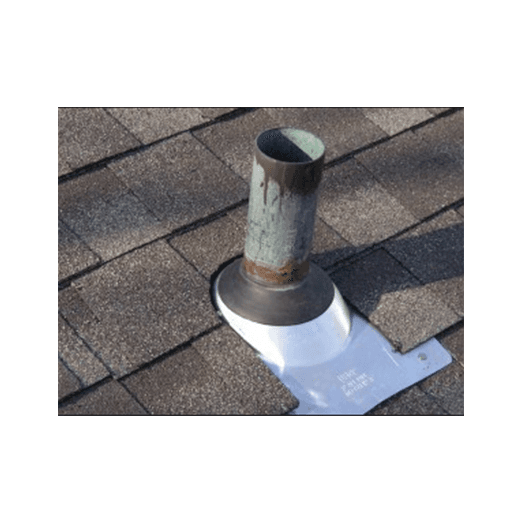

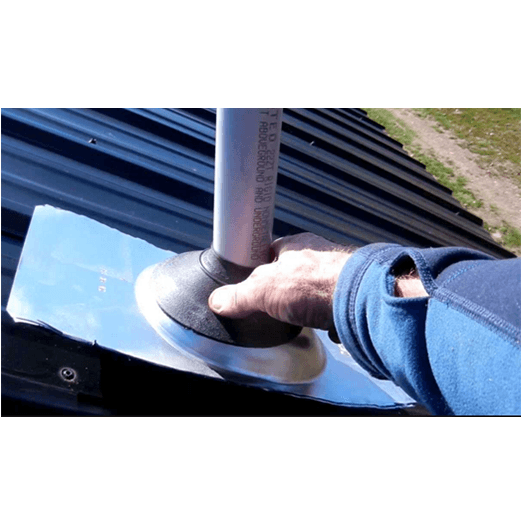

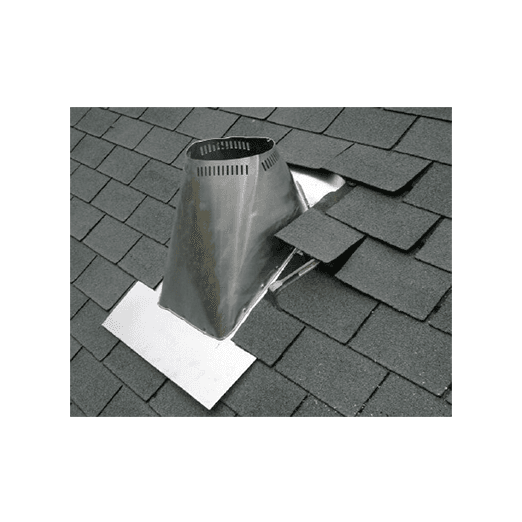

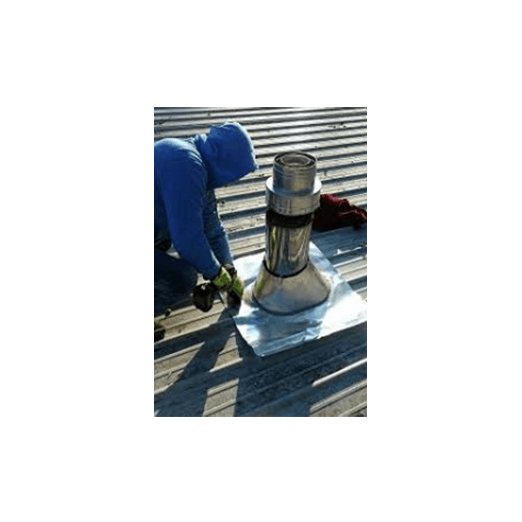

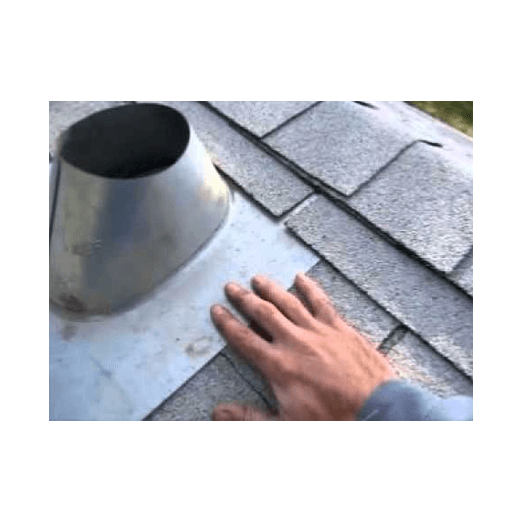

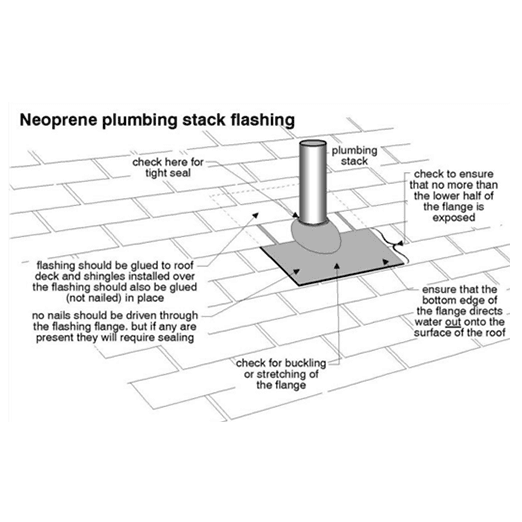

Installation examples
